In the vacuum version, a high-quality seal made of Novaflon® 500 is used. This material consists of multidirectionally expanded PTFE (100% pure) and is characterized by excellent chemical resistance, high mechanical stability, and exceptional sealing properties.
The sealing system is designed for a temperature range of -60 °C to +200 °C and complies with the requirements of the TA-Luft (Technical Instructions on Air Quality).
Suitability for vacuum applications down to 2 mbar absolute has been verified by an independent, accredited testing laboratory. This ensures that the sealing solution offers the highest level of safety and reliability, even under extreme operating conditions.

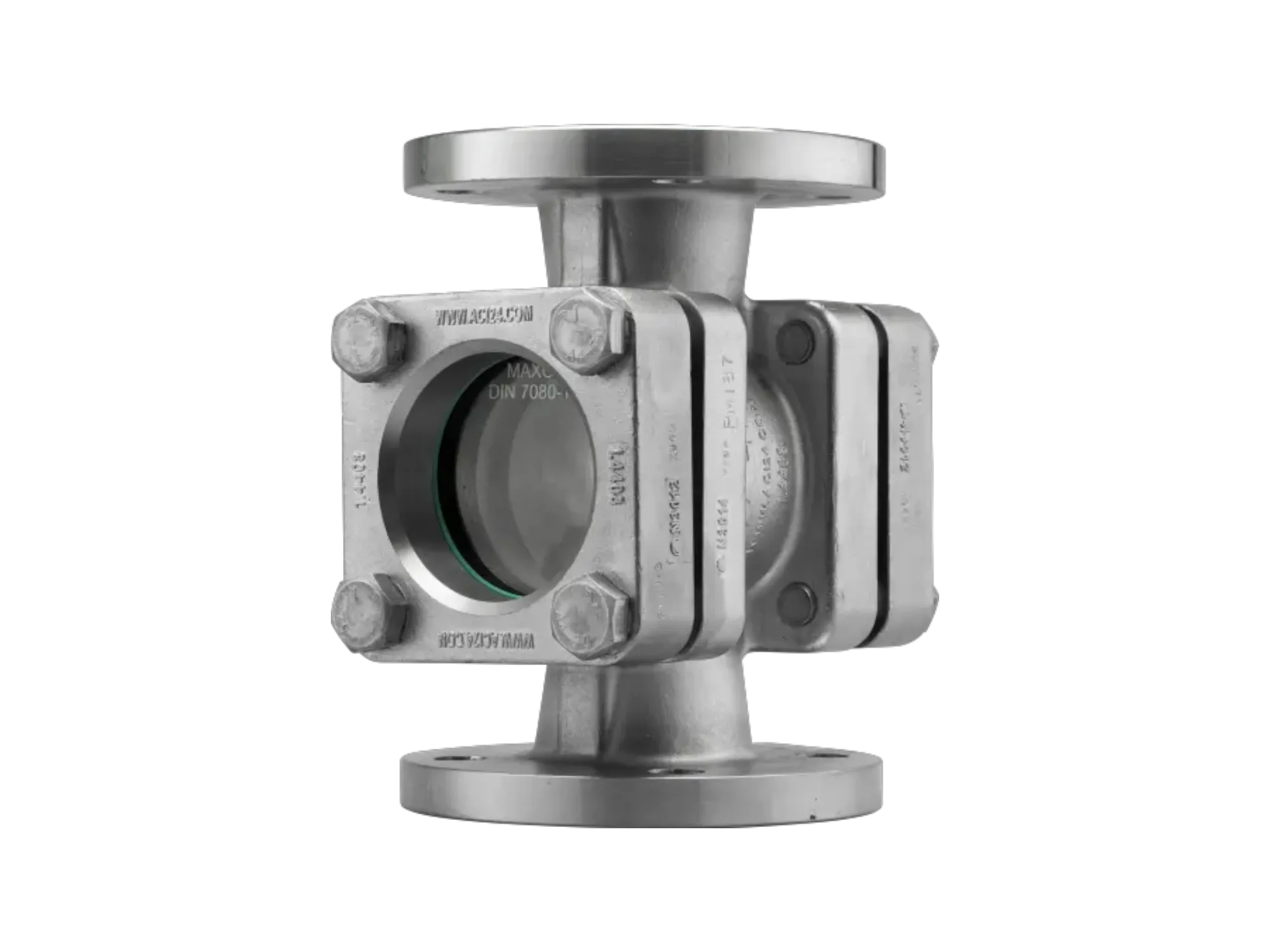

TECHNICAL SPECIFICATIONS – Type 550V Flow Sight Glass
| Flange material: | Stainless steel – 1.4408 Cast steel – 1.0619 Alloy C22 Other alloys as per customer specifications |
| Form: | Flow Sight Glass |
| Gaskets: | Frenzelit novaphit® MST XP KlingerSil® C4400 Garlock Gylon® PTFE (pure or modified) More than 50 other sealing materials available upon request |
| Nominal Size (DN): | DN15 – DN200 |
| Nominal Pressure (PN): | -0.998 to 16 bar |
| Temperature / Glass: | -60°C to 200°C with borosilicate glass (DIN 7080) |
| Opcionals: | LED lighting, available for Ex and non-Ex zones |
