The PN10 sanitary sampling valve is manufactured in stainless steel with Ra ≤ 0.8 µm sanitary polishing, ensuring high hygiene standards. Ideal for demanding environments such as the food, pharmaceutical, and beverage industries, it allows for precise, safe, and contamination-free sampling. Its hygienic design facilitates cleaning and prevents residue buildup, complying with strict sanitary standards.
With a nominal pressure of 10 bar (PN10), this valve is a robust and reliable solution for processes requiring continuous quality control.
Sanitary Sampling Valves Table:
| Reference | Type | Connections | Construction Material | Seal | Stem | O-Ring | Max. Working Temp. |

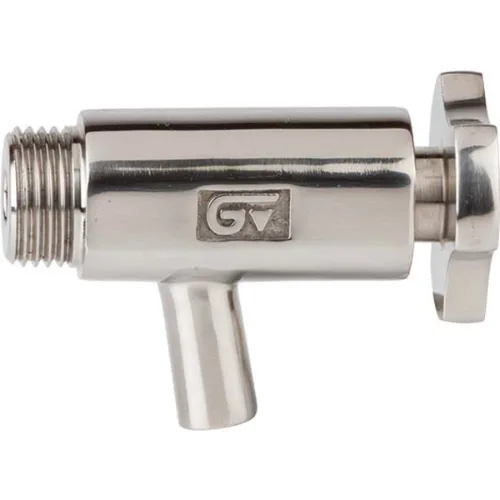

| 2947 | Plain Tube 1/2″ | BSPP ISO 228/1 | Stainless Steel Polished AISI 304 | PTFE | Stainless Steel Polished AISI 304 | NBR | 150 °C |

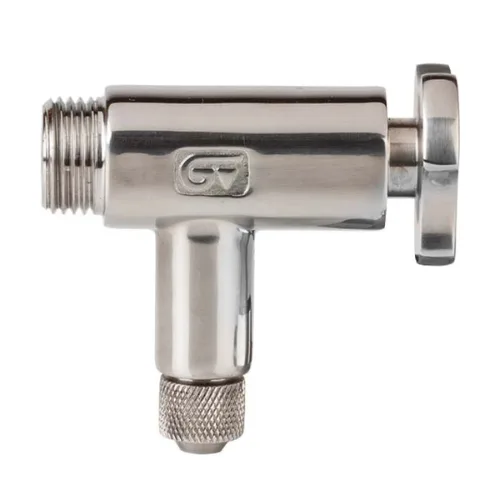

| 2950 | W/ Purge 1/2″ | BSPP ISO 228/1 | Stainless Steel Polished AISI 304 | PTFE | Stainless Steel Polished AISI 304 | NBR | 150 °C |

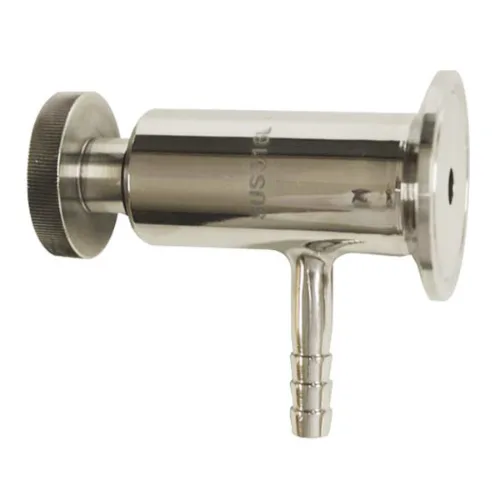

| 2951 | Clamp 1″ x 1 1/2″ | Clamp BS 4825-3 | Stainless Steel Polished AISI 316L | Silicone | Stainless Steel Polished AISI 316L | NBR | 120 °C |
