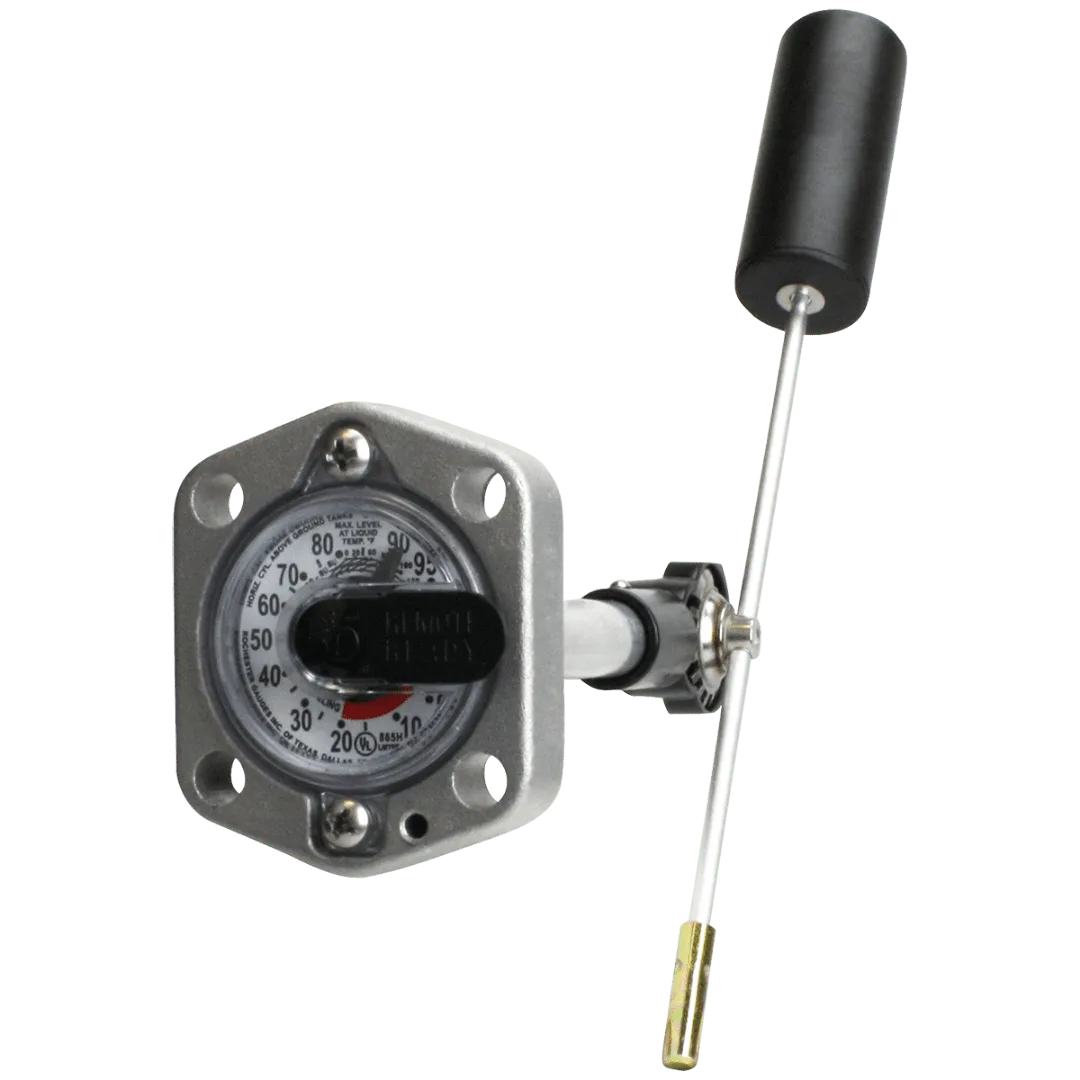

This Rochester level indicator provides accurate and reliable readings and is mounted on top of the tank for easy access and viewing of the fluid level.
Rochester 6281G Features
| Ref. | Internal Diameter of the Tank | Mounting Position | Display | Tank Type |
|---|---|---|---|---|
| 6281DI1000 | 1000 mm | Top | Junior | Stationary |
| 6281DI1200 | 1200 mm | Top | Junior | Stationary |
| 6281DI1500 | 1500 mm | Top | Junior | Stationary |
Application
The 6281 Junior model is a four-bolt level indicator designed for top mounting on ASME vessels, including domestic and above-ground or below-ground storage tanks, for LPG and fuel applications.
It allows direct level reading and is prepared for optional integration of a remote module (Hall Effect), depending on the display installed.
For large deposits, please consult the SR Level Indicators (Rochester 6293/6290).
Technical Specifications
- Standard magnet for driving direct reading dials
- Reading as a percentage of the tank level
- Compatible with Remote Ready technology (depending on the dial applied)
General Specifications
Operating temperature:
- −40 °C to +80 °C
Maximum working pressure:
- 375 psi (25.5 bar)
Accuracy:
- Junior dials: ±5% of full scale
- Accuracy may vary depending on tank shape, fill level, liquid temperature, and tank levelling.
Approvals
UL certification for LPG applications
Building Materials
- Head: Die-cast aluminium
- Centre tube, gears and dial screws: Stainless steel
- Float: Nitrile rubber or aluminium in one piece
- Gasket: Synthetic Rubber
- Mounting screws: Zinc-plated steel (stainless steel optional)
Important Note
This indicator does not replace an automatic overfill prevention device.
For further information or other products, please consult our entire range. LPG range
See the 6200 series for further details.
